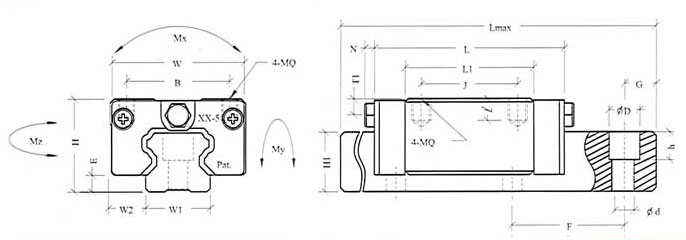

型號 | 組合尺寸 | 滑座尺寸 | 滑軌尺寸 | H | W | W2 | E | L | B×J | MQ×L | L1 | 油孔 | T1 | N | W1 | H1 | F | d×D×h | SJA15B | 28 | 34 | 9.5 | 4.6 | 66 | 26×26 | M4×6.4 | 40 | ?3 | 8.3 | 5 | 15 | 14 | 60 | 4.5×7.5×5.3 | SJA20B | 30 | 44 | 12 | 5 | 77.8 | 32×36 | M5×8 | 48.8 | M6×1 | 7 | 6.5 | 20 | 18 | 60 | 6×9.5×8.5 | SJA20BL | 92.4 | 32×50 | 63.4 | SJA25B | 40 | 48 | 12.5 | 7 | 88 | 35×35 | M6×9.6 | 57 | M6×1 | 11.8 | 6.5 | 23 | 22 | 60 | 7×11×9 | SJA25BL | 110.1 | 35×50 | 79.1 | SJA30B | 45 | 60 | 16 | 9 | 109 | 40×40 | M8×12.8 | 72 | M6×1 | 10 | 6.5 | 28 | 26 | 80 | 9×14×12 | SJA30BL | 131.3 | 40×60 | 94.3 | SJA35B | 55 | 70 | 18 | 9.5 | 119 | 50×50 | M8×12.8 | 80 | M6×1 | 15 | 6.5 | 34 | 29 | 80 | 9×14×12 | SJA35BL | 144.8 | 50×72 | 105.8 | SJA45B | 70 | 86 | 20.5 | 14 | 148.2 | 60×60 | M10×16 | 105 | M8×1 | 18 | 13 | 45 | 38 | 105 | 14×20×17 | SJA45BL | 173 | 60×80 | 129.8 | SJA55B | 80 | 100 | 23.5 | 15 | 170 | 75×75 | M12×19 | 121 | M8×1 | 20 | 13 | 53 | 44 | 105 | 16×23×20 | SJA55BL | 205.1 | 75×95 | 156.1 |
|
---|
電話:025-86629730-52217447-86622491-86622492-86622493-84609300 傳真:025-52300551 聯系人:劉長嶺 13801591302 |
---|
型號 | 參考資料 | 基本荷重 | 容許靜力矩(kgf×m) | 重量 | L max | G | 動額定負荷(G) | 靜額定負荷(G) | Mx | My | Mz | 滑塊 (kgf) | 滑軌 (kgf/M) | | 4000 | 20 | 850 | 1650 | 10 | 8 | 8 | 0.21 | 1.4 | | 4000 | 20 | 1450 | 2650 | 22 | 18 | 18 | 0.31 | 2.6 | | 1900 | 3330 | 28.6 | 23.4 | 23.4 | 0.47 | | 4000 | 20 | 2140 | 4000 | 36 | 32 | 31 | 0.45 | 3.6 | | 2996 | 5600 | 50.4 | 44.8 | 43.4 | 0.56 | | 4000 | 20 | 2980 | 5490 | 60 | 50 | 49 | 0.91 | 5.2 | | 3900 | 7190 | 78.5 | 65 | 65 | 1.2 | | 4000 | 20 | 3960 | 7010 | 96 | 75 | 73 | 1.5 | 7.2 | | 5230 | 9270 | 125 | 95 | 95 | 1.9 | | 4000 | 22.5 | 6740 | 12100 | 216 | 170 | 168 | 2.3 | 12.3 | | 8330 | 14950 | 267 | 210 | 210 | 2.8 | | 4000 | 30 | 9940 | 17100 | 367 | 293 | 288 | 3.9 | 16.9 | | 12820 | 22060 | 473 | 380 | 375 | 5 |
|
---|
