MR12ML臺灣CPC微型導軌 | |
品 牌 | CPC臺灣微型導軌 |
型 號 | MR12ML |
分 類 | |
產(chǎn) 地 | 南京哈寧 |
郵 件 | 請 聯(lián) 系 Email:hrbn@vip.qq.com |
電 話 | +86-25-52217447 86629730 |
聯(lián) 系 人 | 劉長嶺 13801591302 (手機微信支付寶同號) |

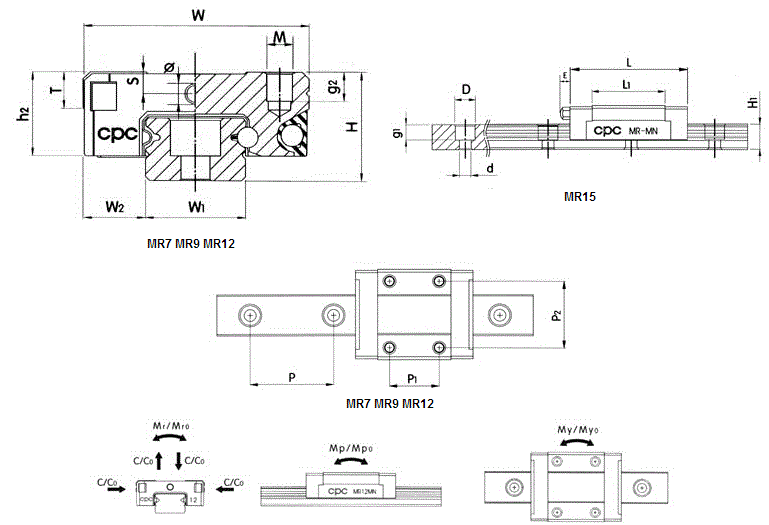

型號規(guī)格 | 組裝尺寸 | 軌道尺寸(mm) | 滑座尺寸(mm) | 基本額定負荷(N) | 靜扭矩(Nm) | 重量 | ||||||||||||||||||
H | W2 | W1 | H1 | P | D×d×g1 | W | L | L1 | P1 | P2 | Φ | E | h2 | M×g2 | S | T | C(dyn.) | Co(stat.) | Mro | Mpo | Myo | Block g | Rail g/m | |
MR 15ML | 16 | 8.5 | 15 | 9.5 | 40 | 6×3.5×4.5 | 32 | 60 | 44 | 25 | 25 | 2.5 | 3.6 | 12 | M3×5.5 | 2.8 | 4.3 | 5350 | 9080 | 70 | 26.9 | 26.9 | 90 | 1010 |
MR 15MN | 16 | 8.5 | 15 | 9.5 | 40 | 6×3.5×4.5 | 32 | 43 | 27 | 20 | 25 | 2.5 | 3.6 | 12 | M3×5.5 | 2.8 | 4.3 | 3810 | 5590 | 43.6 | 10.9 | 10.9 | 53 | 1010 |
MR 12ML | 13 | 7.5 | 12 | 7.5 | 25 | 6×3.5×4.5 | 27 | 47.4 | 34 | 20 | 20 | 2.0 | - | 10 | M3×3.5 | 2.6 | 4.3 | 3240 | 5630 | 34.9 | 16.0 | 16.0 | 51 | 600 |
MR 12MN | 13 | 7.5 | 12 | 7.5 | 25 | 6×3.5×4.5 | 27 | 35.4 | 22 | 15 | 20 | 2.0 | - | 10 | M3×3.5 | 2.6 | 4.3 | 2308 | 3465 | 21.5 | 9.5 | 9.5 | 34 | 600 |
MR 9ML | 10 | 5.5 | 9 | 5.5 | 20 | 6×3.5×4.5 | 20 | 39.5 | 29.5 | 16 | 15 | 1.5 | - | 7.8 | M3×2.8 | 2.2 | 3.3 | 2135 | 3880 | 18.2 | 12.4 | 12.4 | 25 | 330 |
MR 9MN | 10 | 5.5 | 9 | 5.5 | 20 | 6×3.5×4.5 | 20 | 30.5 | 19.5 | 10 | 15 | 1.5 | - | 7.8 | M3×2.8 | 2.2 | 3.3 | 1570 | 2495 | 11.7 | 6.4 | 6.4 | 17 | 330 |
MR 7ML | 8 | 5 | 7 | 4.7 | 15 | 4.2×2.4×2.3 | 17 | 30.4 | 23 | 13 | 12 | 1.2 | - | 6.5 | M2×2.5 | 1.7 | 2.8 | 1310 | 2440 | 9.0 | 7.7 | 7.7 | 16 | 230 |
MR 7MN | 8 | 5 | 7 | 4.7 | 15 | 4.2×2.4×2.3 | 17 | 21.7 | 14.3 | 8 | 12 | 1.2 | - | 6.5 | M2×2.5 | 1.7 | 2.8 | 890 | 1400 | 5.2 | 3.3 | 3.3 | 9 | 230 |
MR 5ML | 6 | 3.5 | 5 | 3.5 | 15 | 3.5×2.4×1 | 12 | 19.5 | 13.5 | 7 | - | 0.8 | - | 4.5 | M2.6×2.0 | 1.1 | 2 | 470 | 900 | 2.4 | 2.1 | 2.1 | 3.3 | 120 |
MR 5MN | 6 | 3.5 | 5 | 3.5 | 15 | 3.5×2.4×1 | 12 | 16 | 10 | - | 8 | 0.8 | - | 4.5 | M2×1.5 | 1.1 | 2 | 335 | 550 | 1.7 | 1.0 | 1.0 | 3 | 120 |
MR 3ML | 4 | 2.5 | 3 | 2.6 | 10 | M1.6 | 8 | 16 | 11 | - | 5.5 | - | - | 3.3 | M2×1.1 | - | 1.5 | 295 | 575 | 0.9 | 1.1 | 1.1 | 1.2 | 53 |
MR 3MN | 4 | 2.5 | 3 | 2.6 | 10 | M1.6 | 8 | 11.7 | 6.7 | - | 3.5 | - | - | 3.3 | M1.6×1.1 | - | 1.5 | 190 | 310 | 0.6 | 0.4 | 0.4 | 0.9 | 53 |
