SBG25FLL、SBC直線導軌 SBG30FL、SBC直線導軌 SBG30FLL、SBC直線導軌 " />
SBG35FL、SBC直線導軌 | |
品 牌 | TBI臺灣滾珠絲杠 |
型 號 | SBG35FL |
分 類 | 深溝球軸承 |
產 地 | 南京哈寧 |
郵 件 | 請 聯 系 Email:hrbn@vip.qq.com |
電 話 | +86-25-52217447 86629730 |
聯 系 人 | 劉長嶺 13801591302 (手機微信支付寶同號) |

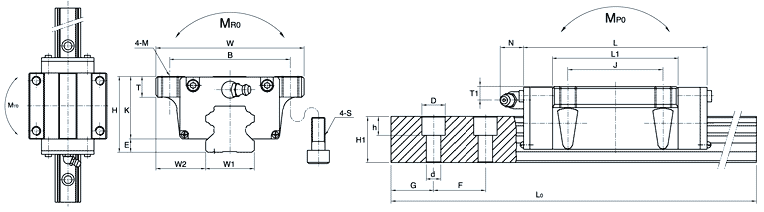

型號 | 安裝尺寸 | 滑塊尺寸 | ||||||||||||
高度 | E | W2 | 寬度 | 長度 | 安裝孔尺寸 | L1 | K | T | 注油嘴 | |||||
H | W | L | B×J | M | S | 安裝孔 | T1 | N | ||||||
SBG15FL | 24 | 2.65 | 16 | 47 | 58.8 | 38×30 | M5 | M4 | 38.8 | 21.35 | 7.2 | ?3.5 | 4 | 5 |
SBG20FL | 30 | 3.5 | 21.5 | 63 | 77.2 | 53×40 | M6 | M5 | 50.8 | 26.5 | 9 | M6×0.75 | 7 | 9.8 |
SBG20FLL | 30 | 3.5 | 21.5 | 63 | 93.2 | 53×40 | M6 | M5 | 66.8 | 26.5 | 9 | M6×0.75 | 7 | 9.8 |
SBG25FL | 36 | 5 | 23.5 | 70 | 86.9 | 57×45 | M8 | M6 | 59.5 | 31 | 10 | M6×0.75 | 6.5 | 9.8 |
SBG25FLL | 36 | 5 | 23.5 | 70 | 106.4 | 57×45 | M8 | M6 | 79 | 31 | 10 | M6×0.75 | 6.5 | 9.8 |
SBG30FL | 42 | 6.5 | 31 | 90 | 98 | 72×52 | M10 | M8 | 70.4 | 35.5 | 12 | M6×0.75 | 8.5 | 10.7 |
SBG30FLL | 42 | 6.5 | 31 | 90 | 120.5 | 72×52 | M10 | M8 | 92.9 | 35.5 | 12 | M6×0.75 | 8.5 | 10.7 |
SBG35FL | 48 | 7.5 | 33 | 100 | 109.5 | 82×62 | M10 | M8 | 80.4 | 40.5 | 13 | M6×0.75 | 9.5 | 10.7 |
SBG35FLL | 48 | 7.5 | 33 | 100 | 135 | 82×62 | M10 | M8 | 105.9 | 40.5 | 13 | M6×0.75 | 9.5 | 10.7 |
SBG45FL | 60 | 7.3 | 37.5 | 120 | 136 | 100×80 | M12 | M10 | 98 | 52.7 | 15 | PT 1/8 | 10.5 | 11 |
SBG45FLL | 60 | 9.8 | 37.5 | 120 | 168 | 100×80 | M12 | M10 | 130 | 52.7 | 15 | PT 1/8 | 10.5 | 11 |
SBG55FL | 70 | 9.8 | 43.5 | 140 | 160 | 116×95 | M14 | M12 | 118 | 60.2 | 17 | PT 1/8 | 12 | 11 |
SBG55FLL | 70 | 9.8 | 43.5 | 140 | 198 | 116×95 | M14 | M12 | 156 | 60.2 | 17 | PT 1/8 | 12 | 11 |
SBG65FL | 90 | 17.5 | 53.5 | 170 | 189 | 142×110 | M16 | M14 | 147 | 72.5 | 23 | PT 1/8 | 15 | 11 |
SBG65FLL | 90 | 17.5 | 53.5 | 170 | 249 | 142×110 | M16 | M14 | 207 | 72.5 | 23 | PT 1/8 | 15 | 11 |
型號 | 滑軌尺寸 | 負載能力 | 重量 | ||||||||||
寬度 | 高度 | 孔間距 | 安裝孔尺寸 | G | 導軌最大 | 動負載 | 靜負載 | 靜態扭矩 | 滑塊 | 滑軌 | |||
W1 | H | F | d×D×h | 長度 | C(N) | CO(N) | (kgf·m) | (kg) | (kg/m) | ||||
LOMAX | MRO | MPO | MYO | ||||||||||
SBG15FL | 15 | 15 | 60 | 4.5×7.5×5.3 | 20 | 3000 | 8330 | 13426 | 7 | 5 | 5 | 0.18 | 1.45 |
SBG20FL | 20 | 17.5 | 60 | 6×9.5×8.5 | 20 | 4000 | 14210 | 25088 | 22 | 18 | 18 | 0.42 | 2.2 |
SBG20FLL | 20 | 17.5 | 60 | 6×9.5×8.5 | 20 | 4000 | 16905 | 36554 | 29 | 32 | 32 | 0.54 | 2.2 |
SBG25FL | 23 | 21.8 | 60 | 7×11×9 | 20 | 4000 | 20972 | 39200 | 36 | 32 | 31 | 0.62 | 3.1 |
SBG25FLL | 23 | 21.8 | 60 | 7×11×9 | 20 | 4000 | 24667 | 48069 | 44 | 50 | 49 | 0.78 | 3.1 |
SBG30FL | 28 | 25 | 80 | 9×14×12 | 20 | 4000 | 29204 | 53802 | 60 | 50 | 49 | 1.1 | 4.45 |
SBG30FLL | 28 | 25 | 80 | 9×14×12 | 20 | 4000 | 35300 | 67904 | 75 | 81 | 80 | 1.44 | 4.45 |
SBG35FL | 34 | 29 | 80 | 9×14×12 | 20 | 4000 | 38808 | 68698 | 96 | 75 | 73 | 1.57 | 6.4 |
SBG35FLL | 34 | 29 | 80 | 9×14×12 | 20 | 4000 | 46070 | 90405 | 126 | 133 | 131 | 2.14 | 6.4 |
SBG45FL | 45 | 38 | 105 | 14×20×17 | 22.5 | 4000 | 61642 | 110662 | 202 | 159 | 157 | 2.96 | 11.25 |
SBG45FLL | 45 | 38 | 105 | 14×20×17 | 22.5 | 4000 | 75597 | 138552 | 250 | 238 | 235 | 3.75 | 11.25 |
SBG55FL | 53 | 45 | 120 | 16×23×20 | 30 | 4000 | 91209 | 156918 | 344 | 274 | 270 | 4.49 | 15.25 |
SBG55FLL | 53 | 45 | 120 | 16×23×20 | 30 | 4000 | 111847 | 196666 | 427 | 413 | 405 | 5.68 | 15.25 |
SBG65FL | 63 | 58.5 | 150 | 18×26×22 | 35 | 4000 | 147980 | 240100 | 629 | 495 | 484 | 6.7 | 23.9 |
SBG65FLL | 63 | 58.5 | 150 | 18×26×22 | 35 | 4000 | 189140 | 320460 | 834 | 850 | 830 | 9.5 | 23.9 |
